Ciclone

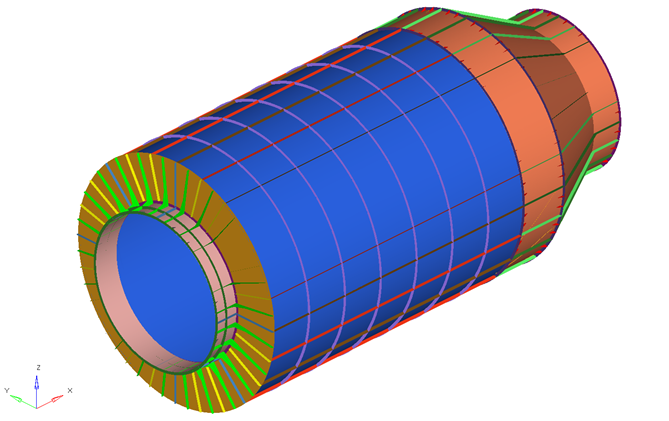

Ciclone - FEM ISO View

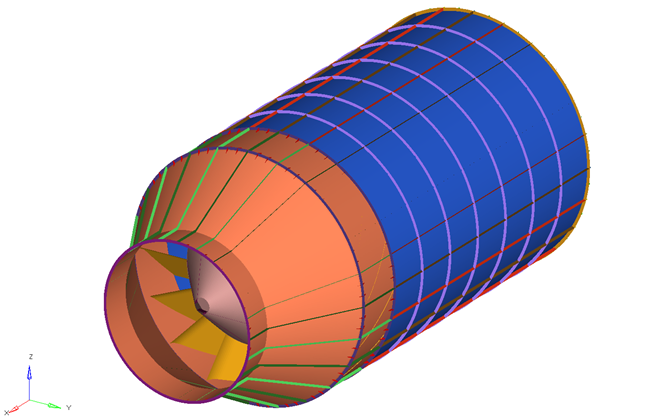

Ciclone - FEM ISO View

Feasibility study and stress analysis of the Ciclone system for dust and fume evacuation.

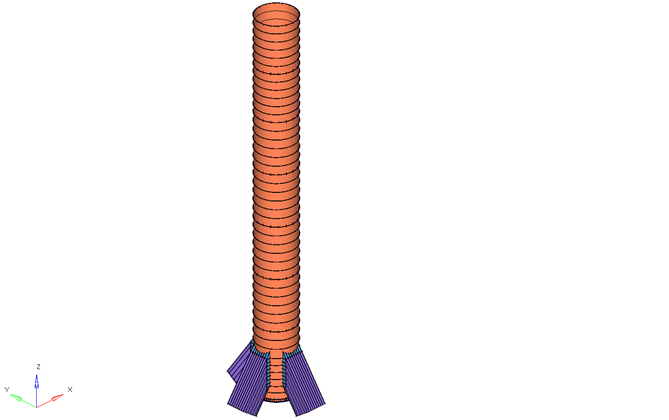

RSL STACK

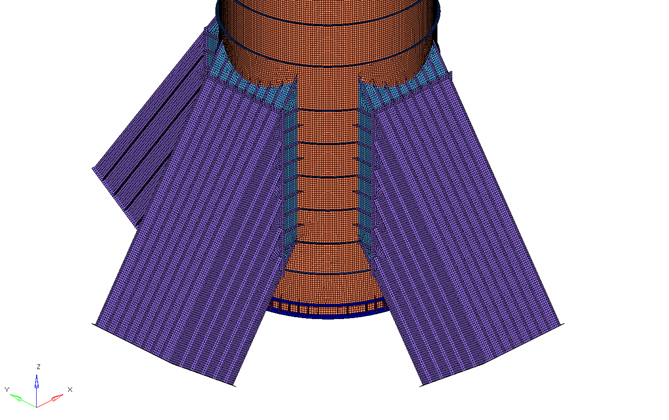

RSL Stack FEM Detail
RSL Stack FEM Detail

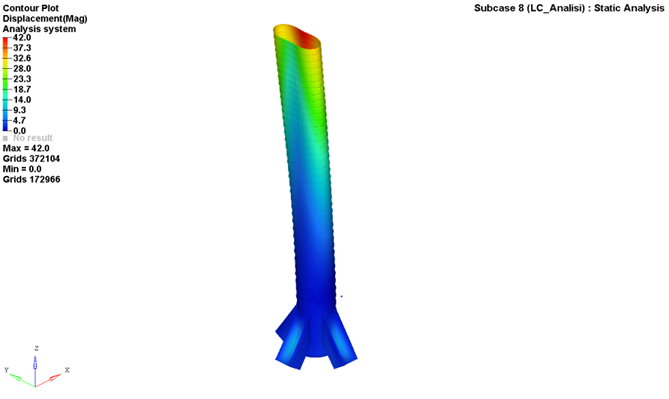

Feasibility study and stress analysis.

AirWorks was in charge for both the design and the sizing.

Calculation was performed follwing both Eurocode and USA Standards and using “ASCE705W” – ASCE 7-05 Code Wind analysis program for wind load estimation of the chimney.
